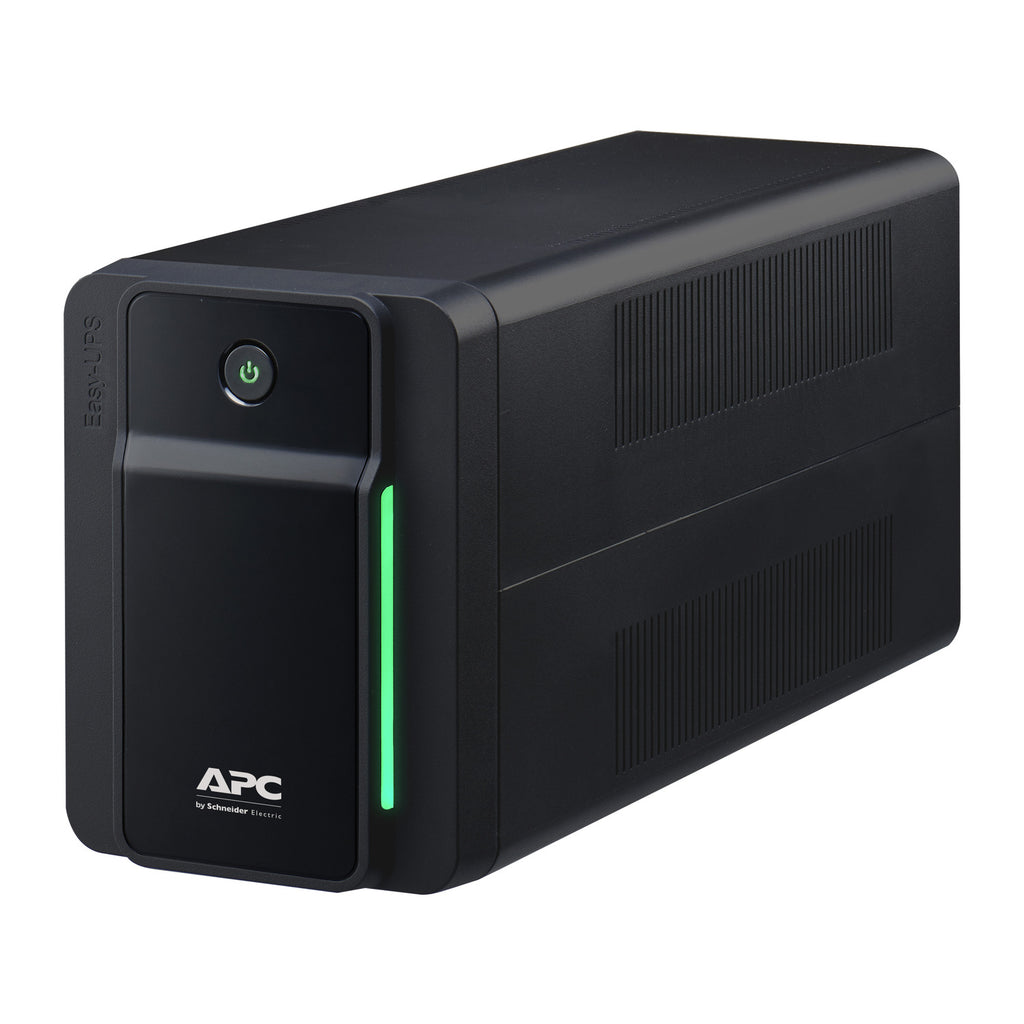

BVX900L-LM UPS 120 VOLTS
G$26,000.00
he APC BVX900L-LM is a 900VA/480W uninterruptible power supply (UPS) with a 120V input, a 12V/9Ah battery, and 6 NEMA 5-15R outlets. It offers battery backup and surge protection, has a line-interactive topology, and features Automatic Voltage Regulation (AVR) to correct low voltages without using the battery. It has a typical line-to-battery transfer time of 6-10ms and requires about 8 hours to recharge.
General
- Product: APC Back-UPS 900VA, 120V, AVR, NEMA Sockets
- Topology: Line-interactive
- Rating: 900VA / 480W
Input
- Voltage: 120V AC (120V – 145V range)
- Frequency: 50/60 Hz ± 3 Hz
- Plug Style: NEMA 5-15P
Output
- Voltage: 120V AC
- Frequency: 50/60 Hz +/- 5 Hz
- Waveform: Stepped approximation to a sine wave (Stepped sine wave)
-

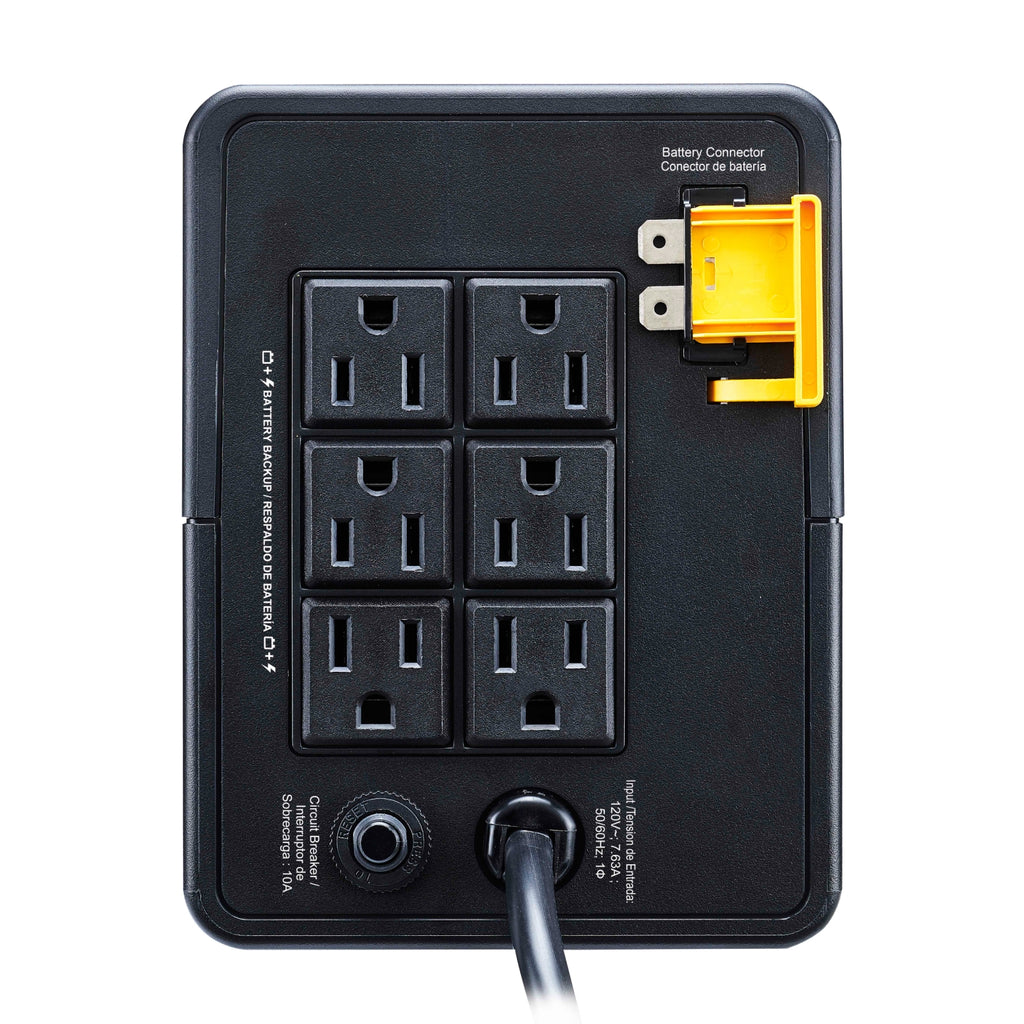

Outlets: 6 x NEMA 5-15R
- 3 outlets with battery backup and surge protection
- 3 outlets with surge protection only
- Transfer Time: 6 ms typical, 10 ms maximum
Battery
- Type: 12V/9Ah Sealed Lead Acid
- Recharge Time: 8 hours
- Runtime: Approximately 1 hour at 480W load
Protection
- Surge Protection: Yes, for all outlets
- Voltage Protection: Automatic Voltage Regulation (AVR)
- Protection Type: Circuit breaker
